AnyCast M9 Plus

Instruction

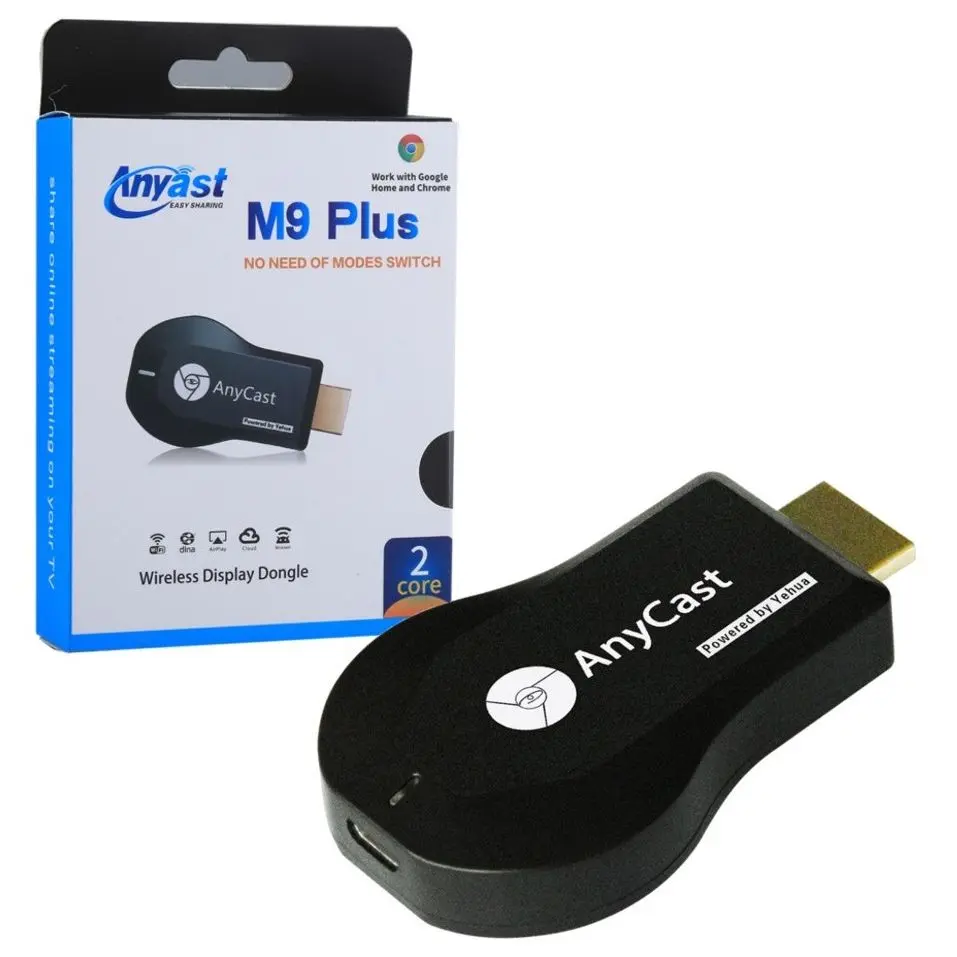

AnyCast M9 is a wireless display receiver mirroring with full HD resolution. Users can easily cast videos or games from a device screen to a big screen without switching mirroring modes. AnyCast supports multi-OS mirroring which including Windows, macOS, Android, and iOS. Free firmware is provided to compatible with up-to-date devices. Please follow the user guide below to complete the setup.

Hardware Installation

1. AnyCast to wifi module

Plug wifi module micro USB port to the dongle micro USB port.

2. AnyCast to power

Plug the wifi module type-A USB port to an external 5V/1A power adapter port.

3. AnyCast to TV/projector/Monitor

Plug the dongle HDMI port to TV/projector/Monitor HDMI inputs.

4. Select Source

Select the right HDMI source which connected to AnyCast dongle. If everything works fine, you may see the main AnyCast setup screen.

AnyCast to Internet

1. Scan QRCode to connect wifi

1.1 Turn on EZMira app on your smart device. Tap “EZMira App” and select “Scan QR code to connect wifi”.

1.2 Scan the QRCode on the TV screen and wait for a few seconds.

1.3 Tap “Done” icon after AnyCast connecting to your phone via wifi. The wifi setup page will pop out automatically.

1.4 Select home wifi and type into the password to connect.

Note: If wifi setup page won’t pop out automatically, please refer to method 2.

2. Connect wifi from browser

2.1 Connect your device to AnyCast SSID via wifi (SSID and password shows on the TV screen)

2.2 Turn on device browser and enter the URL 192.168.203.1

2.3 Tap “Internet” option from setup page

2.4 Select home wifi and enter wifi password to connect

Android Mirror

1. EZMira app Mirror (Available on Android 5.0 and above)

1.1 Turn on EZMira app on your smart device. Tap “EZMira App” and select “Scan QR code to connect wifi”.

1.2 Scan the QRCode on the TV screen and wait for a few seconds.

1.3 Tap “Done” icon after AnyCast connecting to your phone via wifi.

1.4 Click “Discover” from EZMira app bottom.

1.5 Tap mirror icon on the right top corner.

1.6 Select “START NOW” to mirror.

2. Miracast mirroring

2.1 Turn on EZMira app and tap “Connect” option.

2.2 Enable Android Miracast and select device SSID

2.3 Connect to AnyCast and start to mirror

Note: Miracast mirroring available for the devices which support Miracast only.

3. Google Home App mirroring

3.1 Download Google Home App from Google Play Store.
3.2 Enable mobile phone USB tethering option(Refer to USB tethering mirror).
3.3 Turn on Google Home App and select the “Account” login Google account.
3.4 Wait for about 30s before AnyCast appears.
3.5 Select AnyCast-xxxxxxxx and start to mirror.

Noted: Make sure both AnyCast and smart devices connected to the same wifi router.

iOS/macOS Mirror

1. Connect iOS/macOS device to AnyCast SSID via wifi
2. Turn on Screen mirroring/Airplay mirroring and tap AnyCast dongle
3. iOS/macOS device screen will mirror to the TV

Windows Mirror

1. Miracast mirroring (available for Windows 8.1 and Windows 10)

1.1 Press the short key “Win+P” on your keyboard.

1.2 Select “Connect to a wireless display”.

1.3 Select AnyCast SSID to connect.

2. EZMira Mirroring

2.2 Turn on Windows wifi and connect to AnyCast SSID (SSID and password are shown on the TV screen).

2.3 Turn on EZMira app and select “Search Device” option.

2.4 Select AnyCast device and the Windows PC screen will mirror to the TV automatically.

Note: Please turn off the Windows firewall/anti-virus software/computer housekeeper software if the searching device failed.

AnyCast Functions

Internet: Connect to the home router for Internet access

WiFi Password: Change AnyCast wifi password

Resolution: Change AnyCast output resolution

Language: Change AnyCast display language

EZAir Mode: Change mirroring mode for iOS smart devices (Mirror Only for iOS 10.x; Mirror+Streaming for iOS 11.x and above)

Upgrade: Update AnyCast firmware version

Reset to default: Reset AnyCast
