Fast, Accessible Wi-Fi for Your Daily Delight
450Mbps Wireless N Speed
TL-WR940N
450Mbps Wireless N Speed – Fast Download Speed

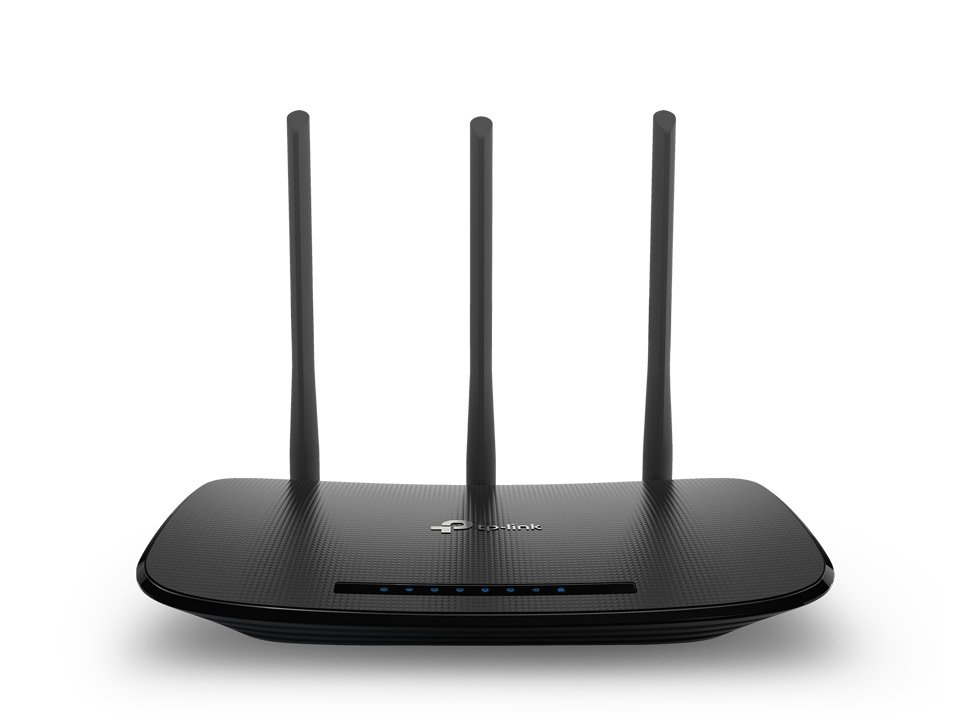

TP-Link’s TL-WR940N is a high speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, TL-WR940N gives users wireless performance at up to 450Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.
-
1. Router Mode
Connect to the Ethernet to instantly create a private wireless network and share internet access to all your Wi-Fi devices.
-
2. Access Point Mode
Transform your existing wired network
to a wireless one. -
3. Range Extender Mode
Boost the existing wireless coverage
in your room.
-
Internet
TL-WR940N
Laptops
Tablets
-
Internet
Host
RouterTL-WR940N
Laptops
Tablets
-
Internet
Host
RouterTL-WR940N
Desktop
Phones
Easy Setup and Use
Set up the TL-WR940N in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
- Easy Setup
- WPS button
- Guest Network
- Tether APP
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | N450 2.4 GHz: 450 Mbps (802.11n) |
| WiFi Range | 2 Bedroom Houses
3× Fixed Antennas |
| WiFi Capacity | Legacy |
| Working Modes | Router Mode Access Point Mode Range Extender Mode |
| HARDWARE | |
|---|---|
| Processor | Single-Core CPU |
| Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 9 V ⎓ 0.6 A |
| SECURITY | |
|---|---|
| WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 2.4 GHz Guest Network |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | VIrtual Server Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP Comex DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 9.1 × 5.7 × 1.4 in (230 × 144 × 35mm) |
| Package Contents | Wi-Fi Router TL-WR940N Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4GHz) FCC: <30dBm |
| WiFi Reception Sensitivity | 450M: [email protected]% PER 216M: [email protected]% PER 130M: [email protected]% PER 54M: [email protected]% PER 11M: [email protected]% PER 6M: [email protected]% PER 1M: [email protected]% PER |
